RGBW LEDs kit

LED system for Xangle - control your lights directly from Xangle!

Included

• one RGBW LEDs strip
• non waterproof, high output
• Select 60 or 120 pixels from the dropdown
• One XangleBoard (without 3.5mm ports)
• Pre-assembled, ready to be used

Not included

• Power adapter: suggested item: https://amzn.to/3AyuT51 for 60px (5V 10A), or https://amzn.to/3j7NzRH for 120px (5V 12A or 15A)
• Raspberry Pi
• Xangle software

Instructions

• Flash one micro SD card and put it in your Raspberry Pi
• Mount the Xangle Board (pi-hat) on the Raspberry Pi
• Connect the Pi to your local network (ethernet cable)
• Power up the board and the Pi
• Open the Lights module in Xangle (/lights from a web browser)

Demo

1. Using the LEDs to show a rainbow at countdown time, then turning off all of them at trigger time: https://youtu.be/iECjM9Vvmi0
2. Changing the colors from the web based user interface: https://youtu.be/p3e50PGxS_w

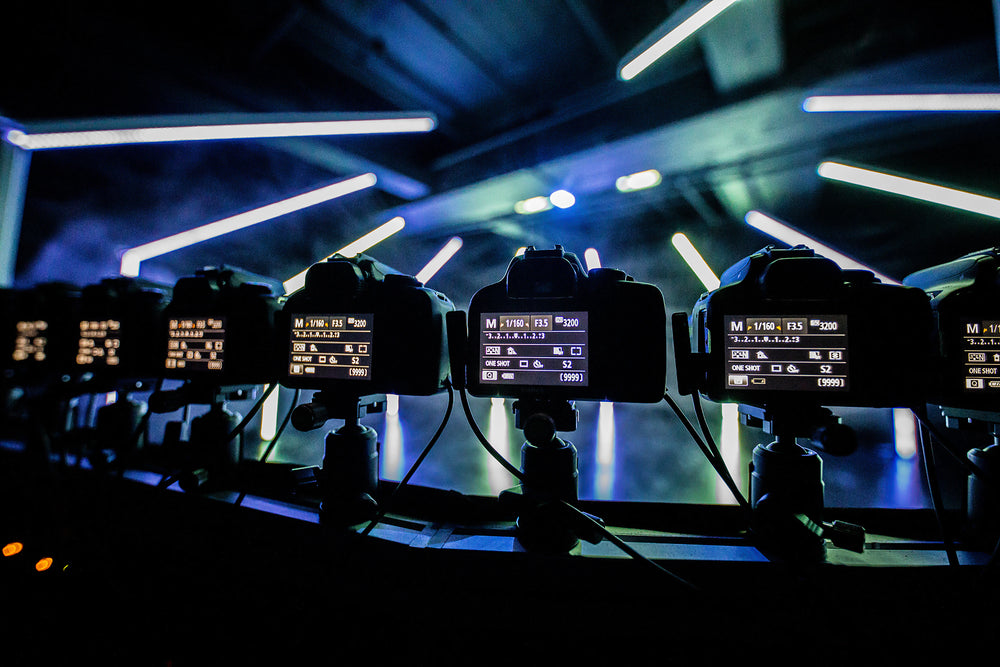

For reference, our full-body scan (as demonstrated in this page) is made out of 10 units of 60 pixels
